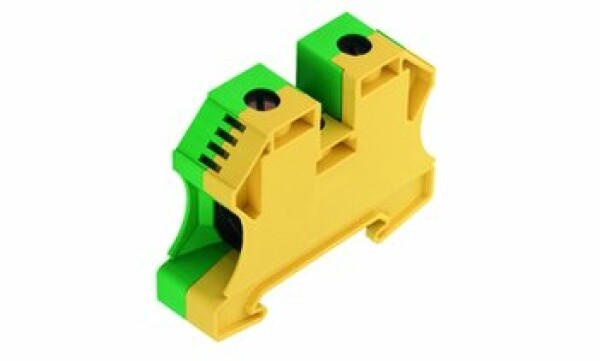

Weidmüller Schutzleiterklemme 66x16x51mm WPE 35N
delivery time: Im Versandlager lagernd - versandbereit in 24-48 Stunden
Product.Nr.: 1717740000
weight: 1 kg
Manufacturer: Weidmüller
Bewertung:
Produktbeschreibung
Codice articolo produttore: 1717740000 · Colore:
Verde-Giallo · Compatibile RoHS: Sì · Contenuto: 1 pz.
· Larghezza: 16 mm · Sezione trasversale max.
flessibile: 35 mm² · Sezione trasversale max.
rigido: 35 mm² · Sezione trasversale min. flessibile:
2.5 mm² · Sezione trasversale min.
rigido: 2.5 mm² · Tipo (tipo di produttore): WPE 35NWeidmüller WPE 35N. Width: 16 mm, Depth: 50.5 mm, Height: 66 mm
General
Type
Feed-Through Terminal Block
Colour
Green; Yellow
Material
Copper; Steel; Tin
Material
Steel; Tin
Number of pieces
100er
Technical specifications
Pitch
16 mm
Cross section from/to
2.5 - 35 mm²
Cross section single wire
2.5 - 2.5 mm²
Conductor cross section stranded
2.5 - 2.5 mm²
Cross section fine wire with isolator
2.5 - 2.5 mm²
Cable cross-section fine-stranded without sleeve
2.5 - 2.5 mm²
Measurements / weight
Measurements
66 x 16 x 51 mm
